DIN603 M6 M8 M10 M12 A2-70 304 Stainless Steel Truss Round Head Square Neck Screw

Name: DIN603 M6 M8 M10 M12 A2-70 304 Stainless Steel Truss Round Head Square Neck Screw
SKU: 1005006343336413
Availability: InStock

Price range: $14.99 through $39.99

8 Items sold in last 24 hours

6 People watching this product now!

Dimensions

Length

Clear

Fast worldwide shipping on every order.
Your order arrives in 7–15 business days with tracking provided.
Shop risk-free with our 14-day hassle-free returns.
Your transactions are SSL-encrypted and 100% safe.
We offer fast, friendly customer support whenever you need help.

Description

The DIN603 Truss Round Head Square Neck Carriage Screws are designed for various applications in the machinery and construction industries. Made from high-quality 304 stainless steel (A2-70), these screws provide excellent strength and durability.

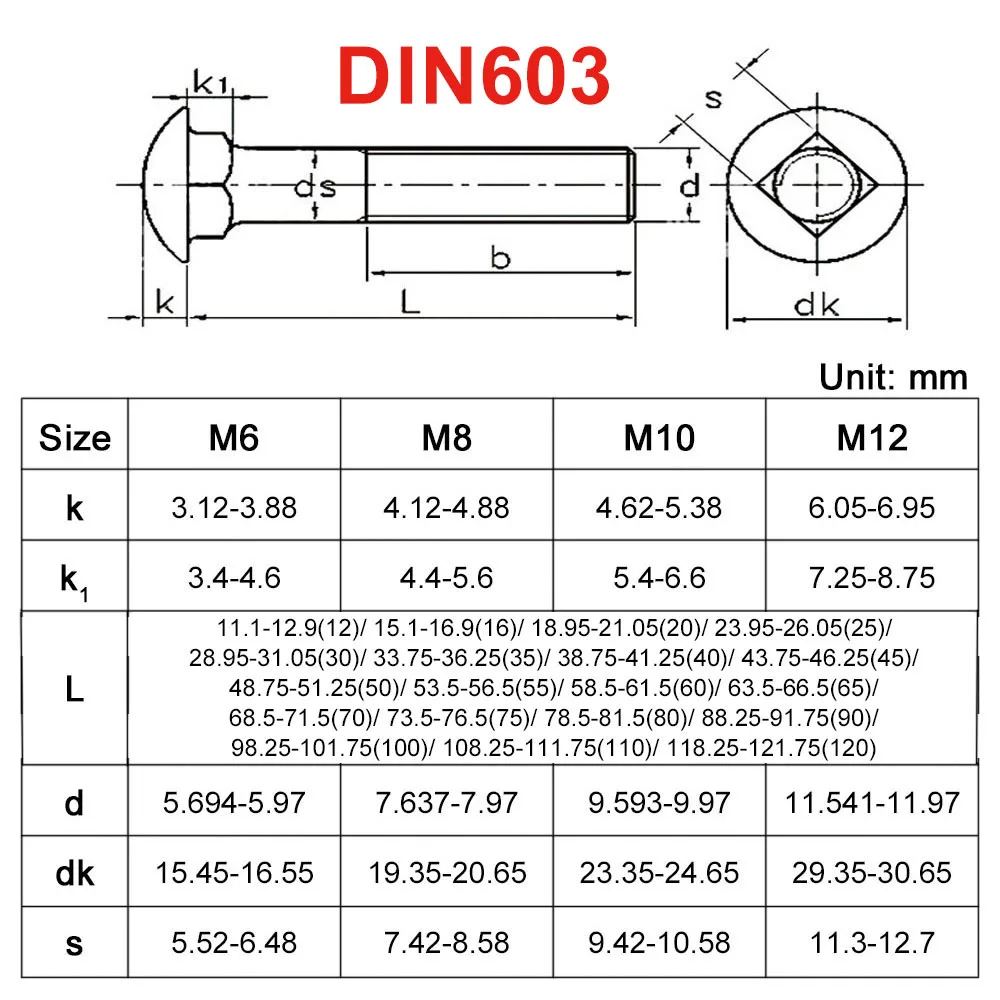

Standard: DIN603
Available Sizes: M6, M8, M10, M12
Thread Pitch: 1mm (M6), 1.25mm (M8), 1.5mm (M10), 1.75mm (M12)
Packaging: Plastic bag or carton

Specifications:

Thread Diameter: Approximately 6mm (M6), 8mm (M8), 10mm (M10), 12mm (M12)
Thread Length Options: Approximately 12mm, 16mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm, 110mm, 120mm, 130mm, 140mm, 150mm

Package Content:

5PCS M12, 10PCS M10, 20PCS M8, 30PCS M6

Specification

Weight	0.260 kg
Dimensions	15 × 13 × 3 cm
Brand Name	NoEnName_Null
Material	Stainless steel, 304 (A2-70) stainless steel
High-concerned chemical	None
DIY Supplies	Metalworking
Origin	Mainland China
Model Number	DIN603
is_customized	Yes
Certification	None
Size	d(thread diameter) xL(thread length)
Thread diameter	M6(6mm) / M8(8mm) / M10(10mm) / M12(12mm)
Thread length	12mm/16mm/20mm/25mm/30mm/35mm/40mm/45mm/50mm/55mm/60mm/65mm/70mm/75mm/80mm/85mm/90mm/100mm/110mm/120mm/130mm/140mm/150mm
Thread pitch	1mm(M6) / 1.25mm(M8) / 1.5mm(M10) / 1.75mm(M12)
Packaging	plastic bag or carton
Application	machinery industry, automobile, solar energy, wind energy, furniture, construction industry, etc.
Choice	yes
