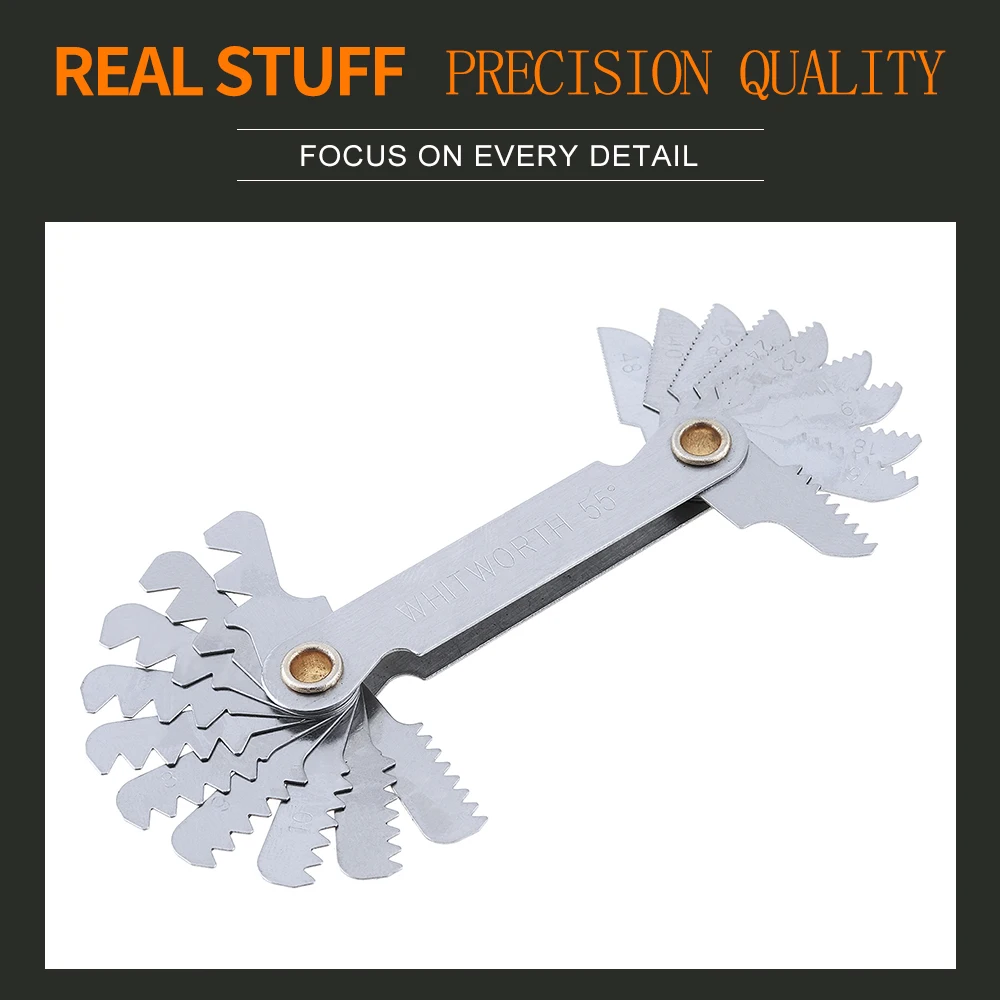

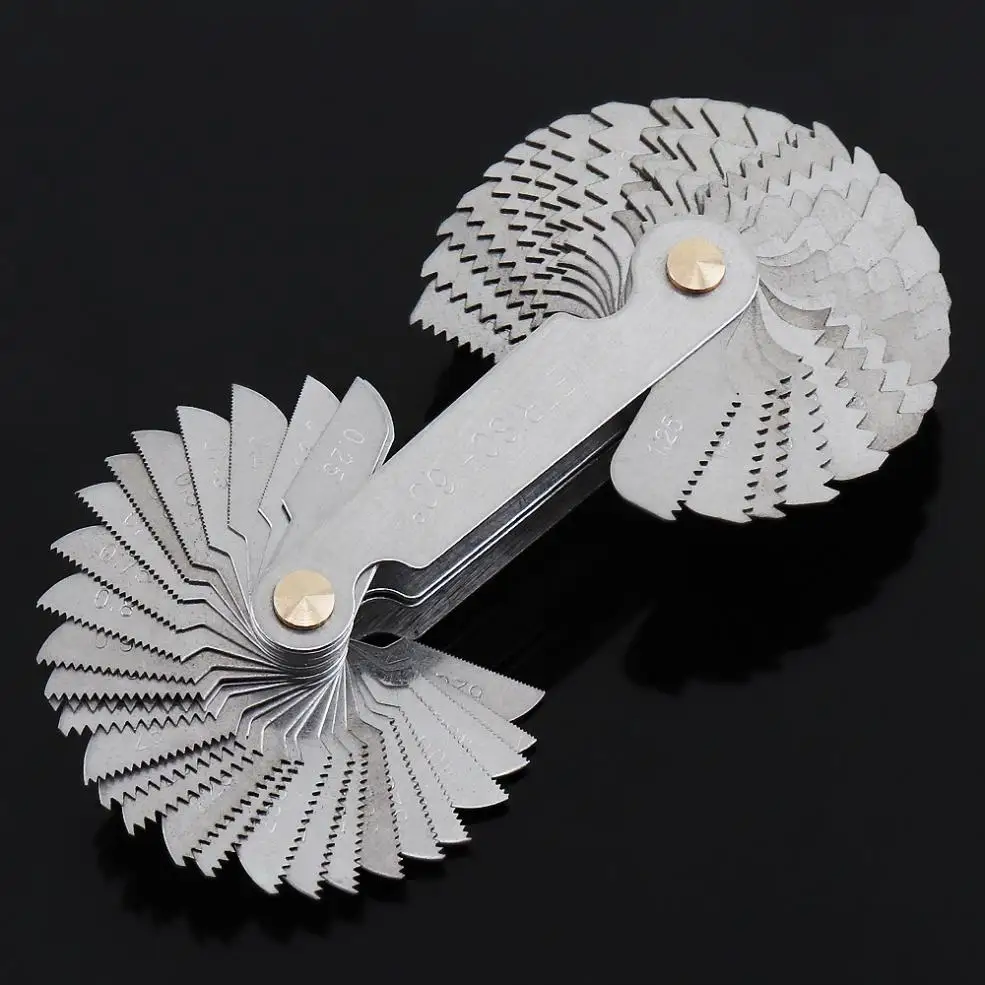

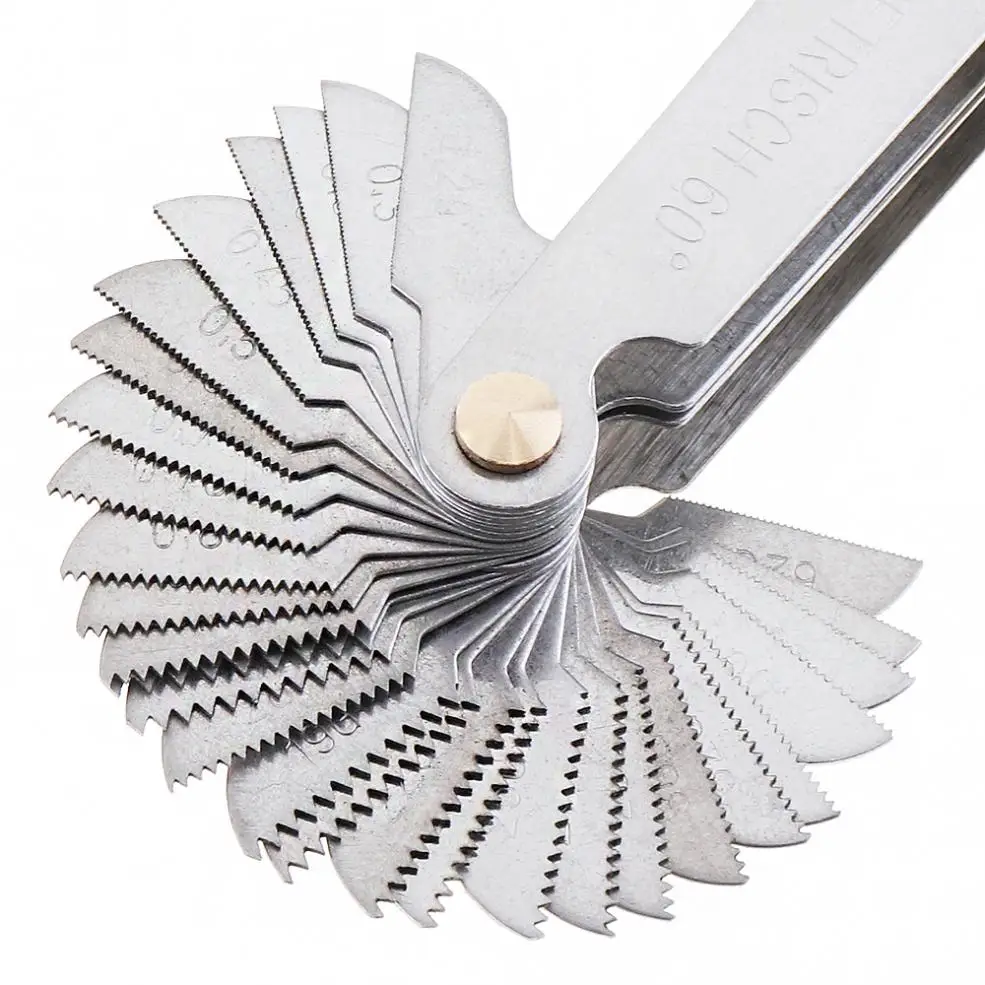

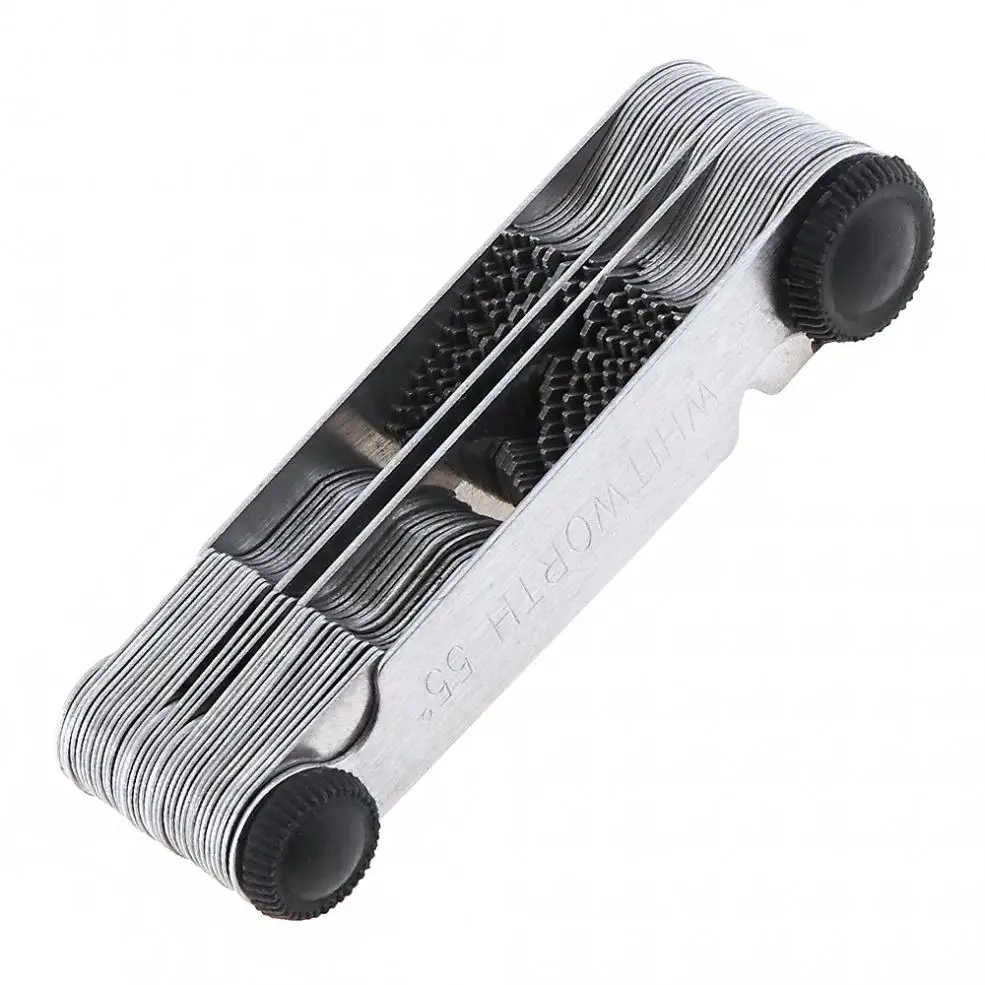

This 55-60 Degree Stainless Steel Screw Gauge is designed for precise measurement of thread pitches in both metric and imperial units. Ideal for industrial applications, this tool is essential for ensuring accuracy in thread cutting and gear tooth measurements.
- Features:
- Check the angle on the thread cutting tool using the V groove of the gauge.
- Useful for verifying tool angles when cutting threads on a metal lathe.
- Includes a lock-up device for secure measurements.
- Specification:
- Blade Quantity: 58 pcs
- Measuring Range:
- Metric: 6.0, 5.5, 5.0, 4.5, 4.0, 3.5, 3.0, 2.5, 2.0, 1.75, 1.5, 1.25, 1.0, 0.9, 0.8, 0.75, 0.7, 0.6, 0.5, 0.45, 0.4, 0.35, 0.3, 0.25
- Imperial: 4G, 4 1/2G, 5G, 6G, 7G, 8G, 9G, 10G, 11G, 12G, 13G, 14G, 16G, 18G, 19G, 20G, 22G, 24G, 25G, 26G, 28G, 30G, 32G, 36G, 40G, 48G, 60G, 62G
- US: 8, 10, 11, 14, 19, 28
- Blade Thickness: Approximately 0.4 cm
- Product Weight: Approximately 75 g / 2.65 oz
- Product Dimensions: Approximately 67 x 20 x 13 mm / 2.64 x 0.79 x 0.51 in
- Applicable for industrial measurement.
Note: Ensure the measuring surface is clean before use to maintain accuracy.
- Package Content:
- 1 x Screw Gauge Set
