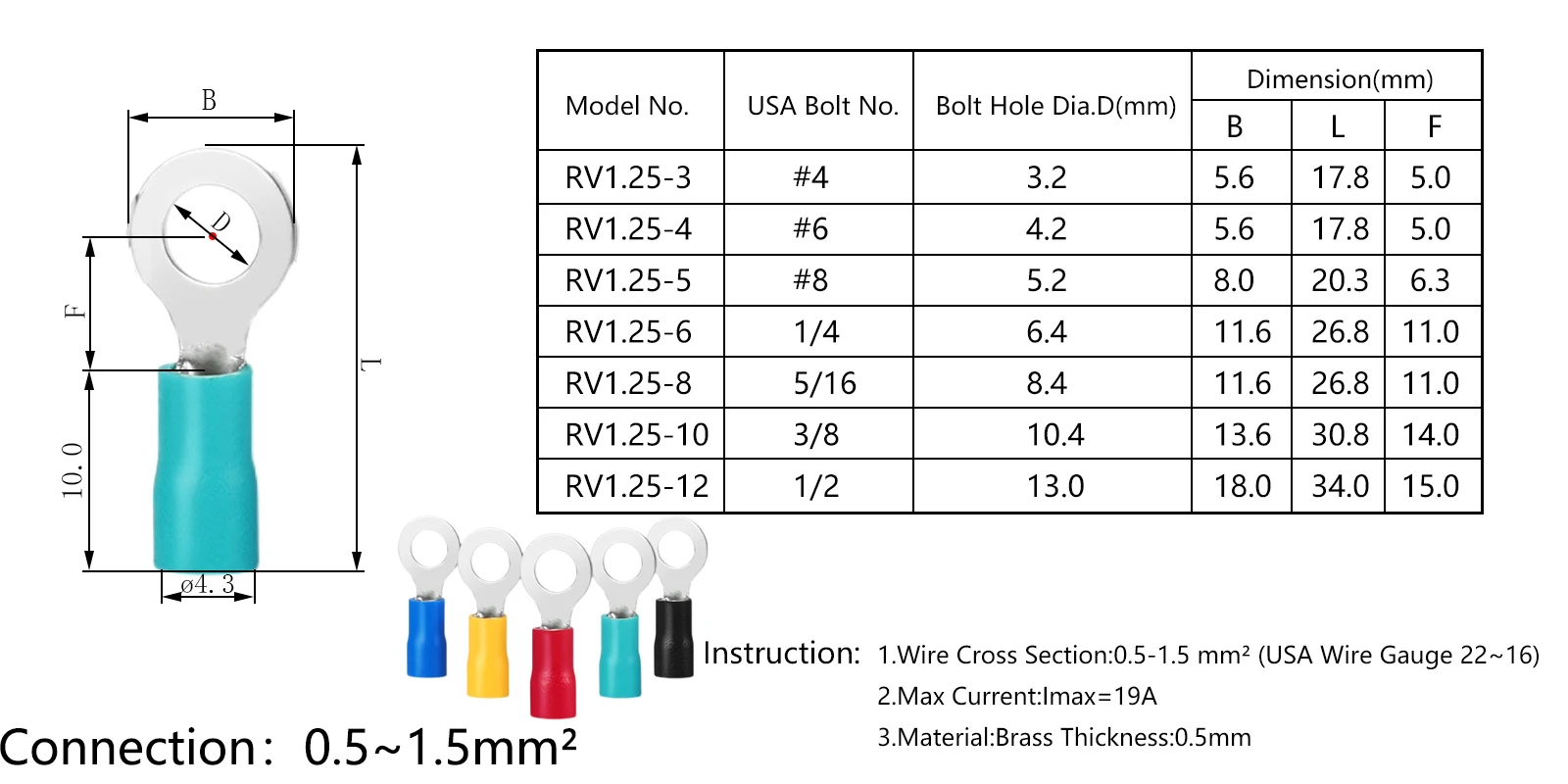

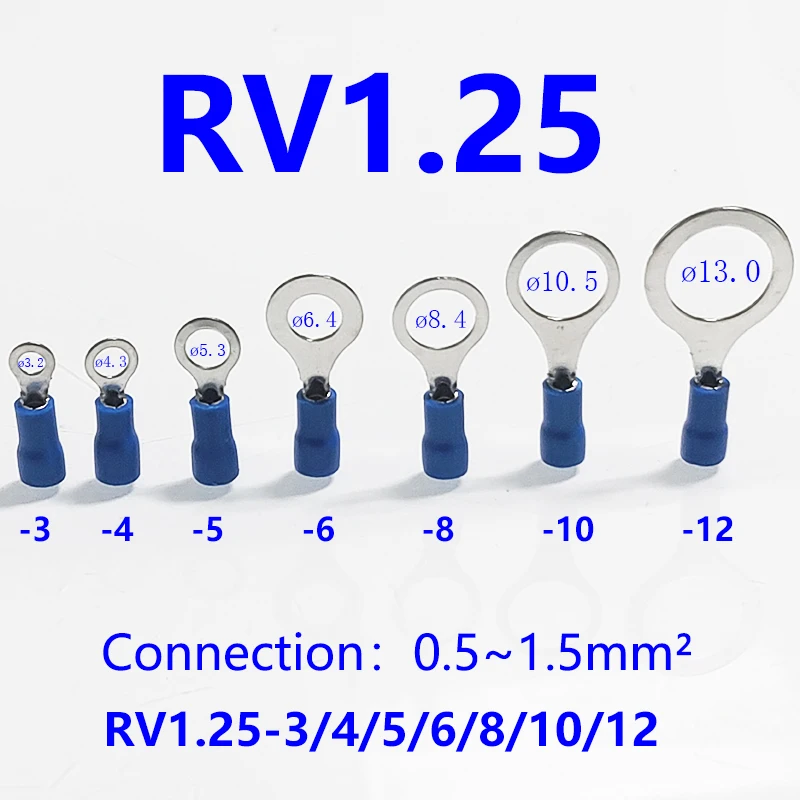

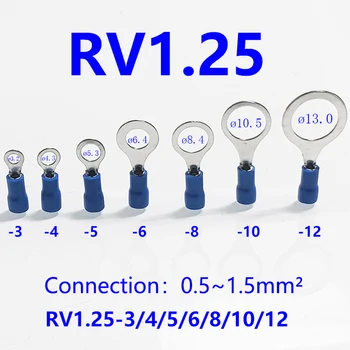

Introducing the 50PCS Wire Insert Crimp Terminal RV1.25 Series, designed for use with wire sizes ranging from 0.5 to 1.5mm². This series includes models RV1.25-3, RV1.25-4, RV1.25-5, RV1.25-6, RV1.25-8, RV1.25-10, and RV1.25-12, available in various colors including black, red, yellow, blue, and green.
- Max Current: 19A
- Max Voltage: 300V
- Insulating Material: PVC
- Brass Thickness: 0.5mm
- Wire Cross Section: Approximately 0.5-1.5 mm²
- USA Wire Gauge: AWG 22-16
These crimp terminals are ideal for secure electrical connections in various applications.
- Package includes 50 pieces of crimp terminals.
