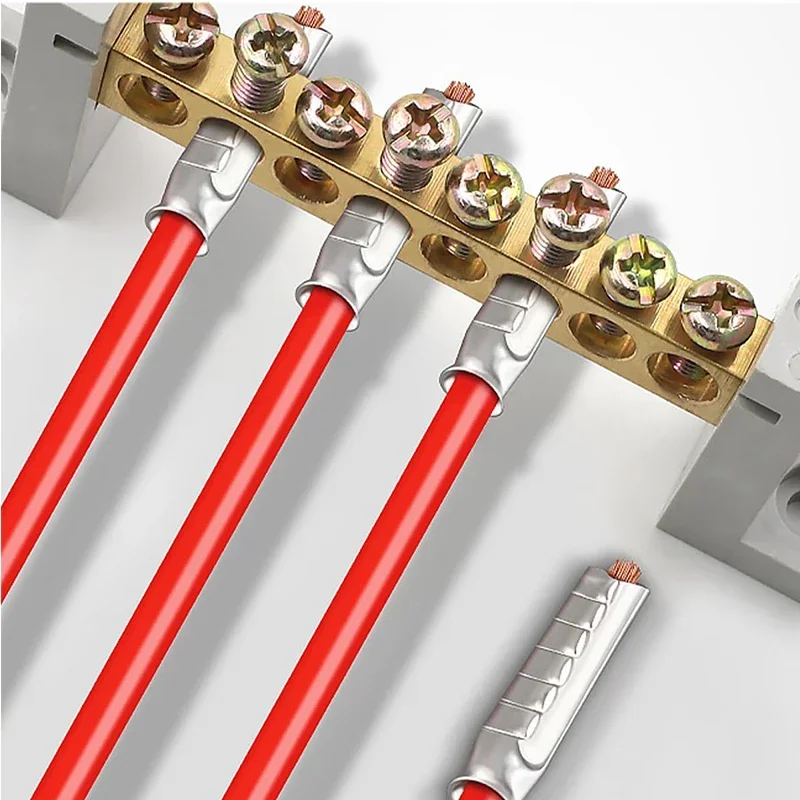

100PCS Tin Plated Copper Wire Terminals Non Insulated Wire Connectors 22-10AWG

100PCS of tin plated copper wire terminals – non insulated wire connectors, suitable for cable terminal with wire range from 22AWG to 10AWG.

Features

• Compatible with wire sizes from 0.5 mm² (22 AWG) to 16.0 mm² (6 AWG).

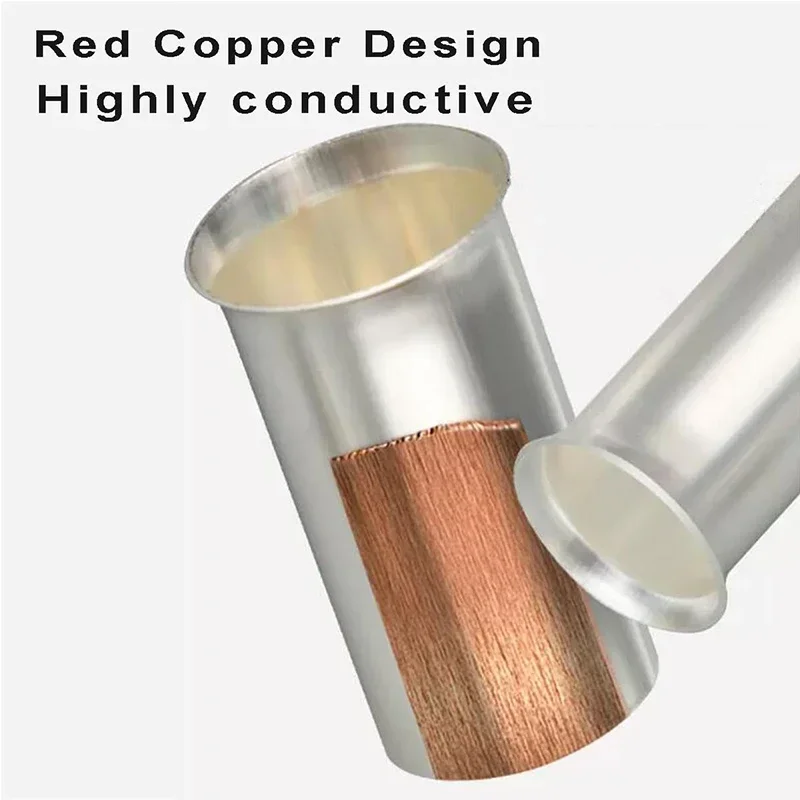

• Durable tin plated copper construction for reliable connections.

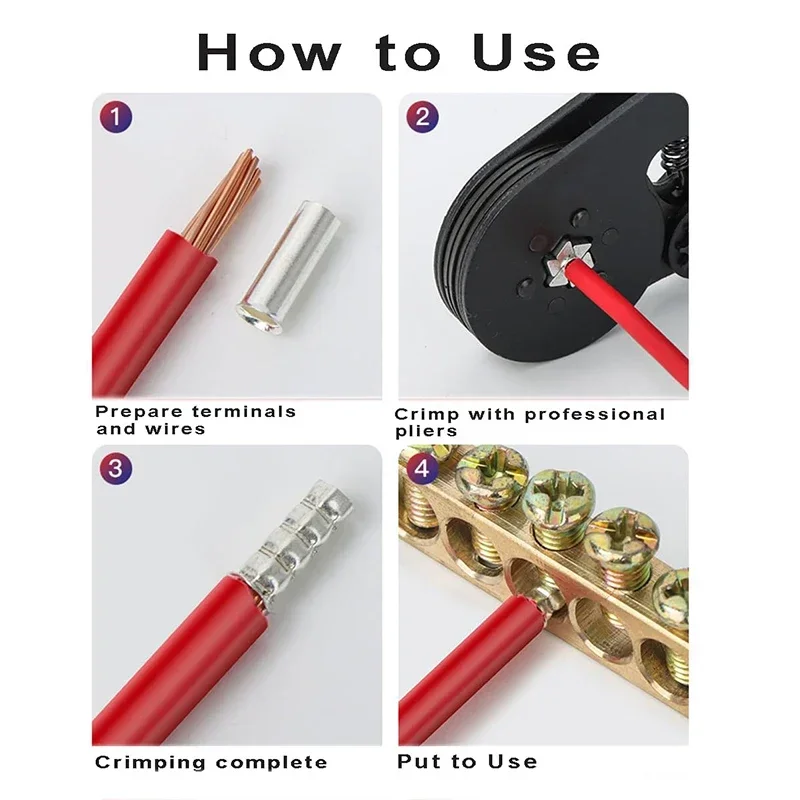

• Easy to crimp for secure and stable electrical connections.

Specification

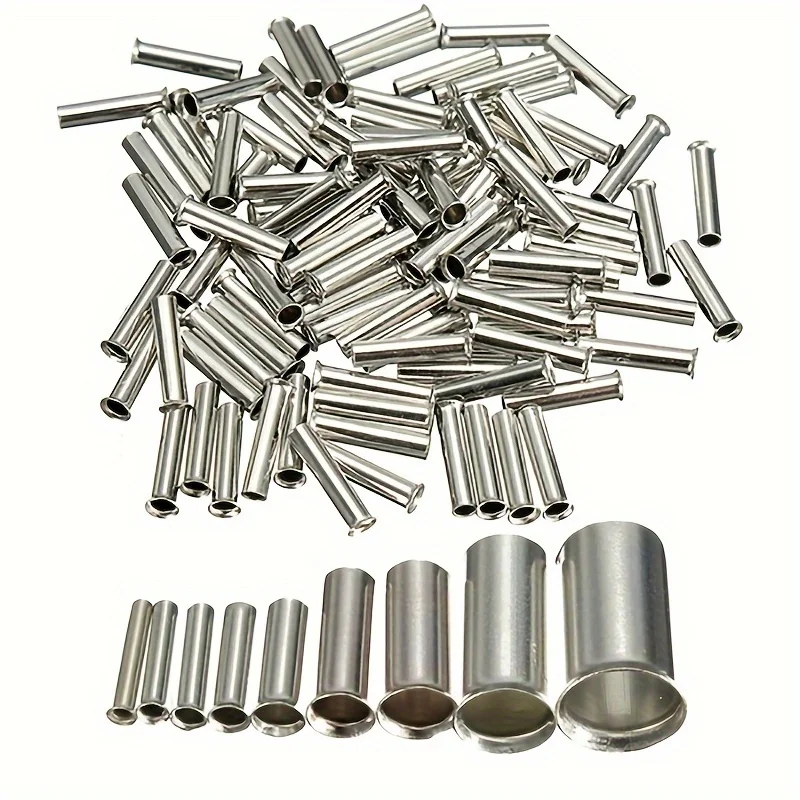

• Model: EN0508 – Wire Range: 0.5 mm² (22 AWG) – Dimensions: L: 8mm, D: 1.3mm, C: 1.0mm, W: 1.7mm
• Model: EN7508 – Wire Range: 0.75 mm² (20 AWG) – Dimensions: L: 8mm, D: 1.5mm, C: 1.2mm, W: 1.9mm
• Model: EN1008 – Wire Range: 1.0 mm² (18 AWG) – Dimensions: L: 8mm, D: 1.7mm, C: 1.4mm, W: 2.2mm
• Model: EN1508 – Wire Range: 1.5 mm² (16 AWG) – Dimensions: L: 8mm, D: 2.0mm, C: 1.7mm, W: 2.5mm
• Model: EN2508 – Wire Range: 2.5 mm² (14 AWG) – Dimensions: L: 8mm, D: 2.6mm, C: 2.2mm, W: 3.3mm
• Model: EN4009 – Wire Range: 4.0 mm² (12 AWG) – Dimensions: L: 9mm, D: 3.2mm, C: 2.8mm, W: 3.9mm
• Model: EN6012 – Wire Range: 6.0 mm² (10 AWG) – Dimensions: L: 12mm, D: 3.9mm, C: 3.5mm, W: 4.7mm
• Model: EN10-12 – Wire Range: 10.0 mm² (8 AWG) – Dimensions: L: 12mm, D: 4.9mm, C: 4.5mm, W: 5.8mm
• Model: EN16-12 – Wire Range: 16.0 mm² (6 AWG) – Dimensions: L: 12mm, D: 6.2mm, C: 5.8mm, W: 7.2mm

Package Content

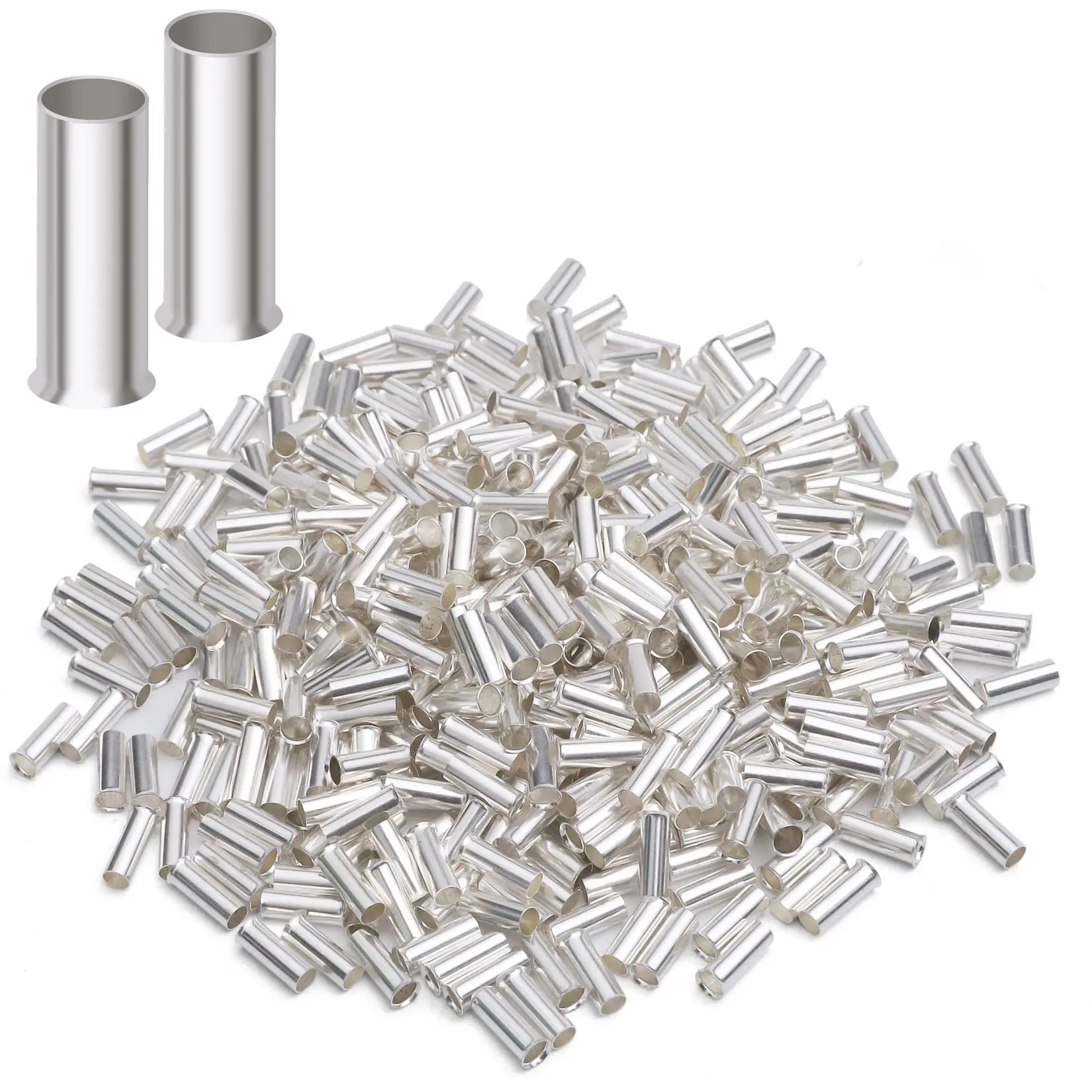

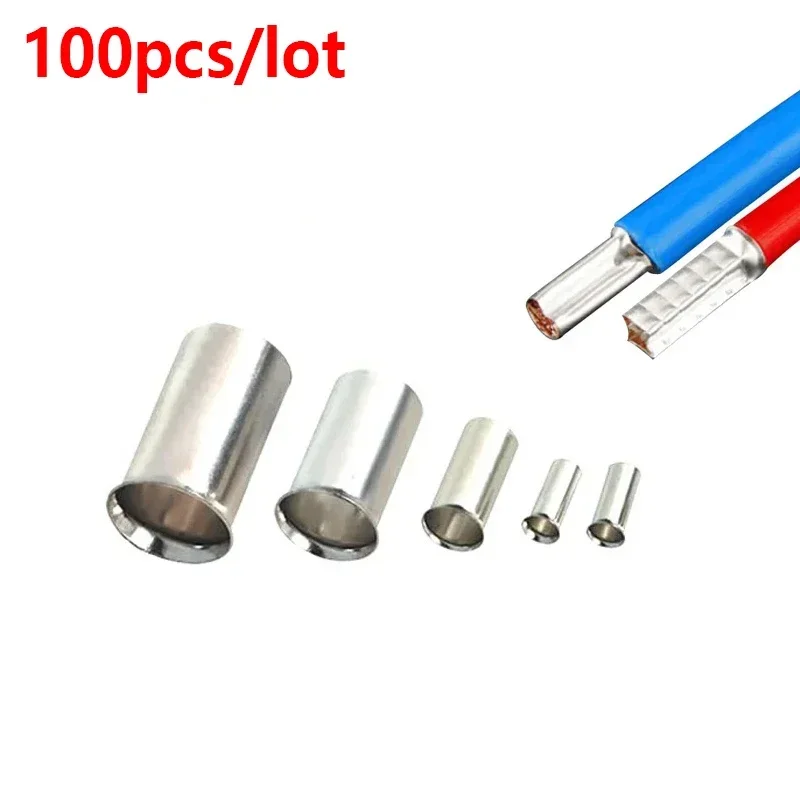

• 100PCS of tin plated copper wire terminals.
