Photovoltaic Connectors Solar Cable Connectors IP67 Waterproof Adapters DC1000V 30A

These Photovoltaic Connectors are designed for solar cable connections, providing reliable and waterproof performance for outdoor use. Available in various quantities, they are suitable for cables with cross-sectional areas of 2.5mm² to 6mm², making them a versatile choice for solar power applications.

• IP67 waterproof rating ensures protection against water and dust.
• Rated current of 30A and rated voltage of 1000V DC.
• Compatible with PV cables of different insulation diameters (2.5mm² to 6mm²).
• Easy installation with quick assembly and removal without additional tools.
• Durable PPO insulation material with excellent aging resistance and UV endurance.
• Connector contact resistance is ≤0.5mΩ.
• Operating temperature range: -40°C to +85°C.

Specifications:

• Rated current: 30A
• Rated voltage: 1000V DC
• Degree of waterproof: IP67
• Connector conductor material: copper, tin
• Connector insulation material: PPO/PPE
• Insertion force: ≤50N
• Withdrawal force: ≥50N
• Suitable cable: 2.5mm² to 6mm² (including AWG13, AWG12, AWG11, AWG10)
• Adapter wire outer diameter: 5mm-7mm

Package Content:

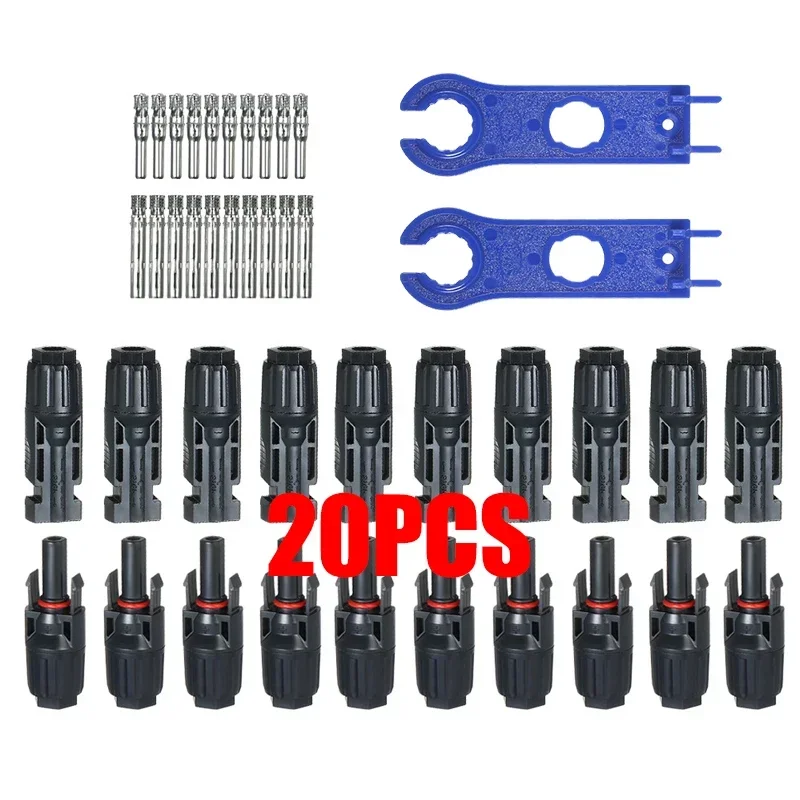

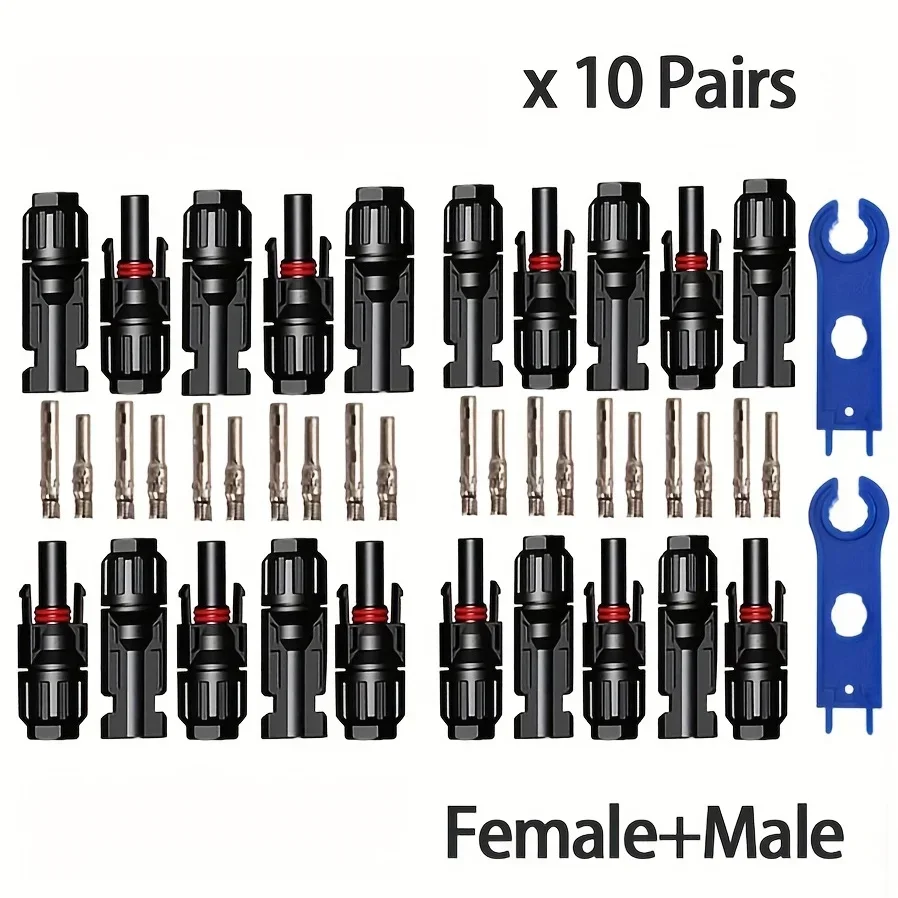

• Available in 10PCS, 20PCS, 60PCS, or 100PCS options.
