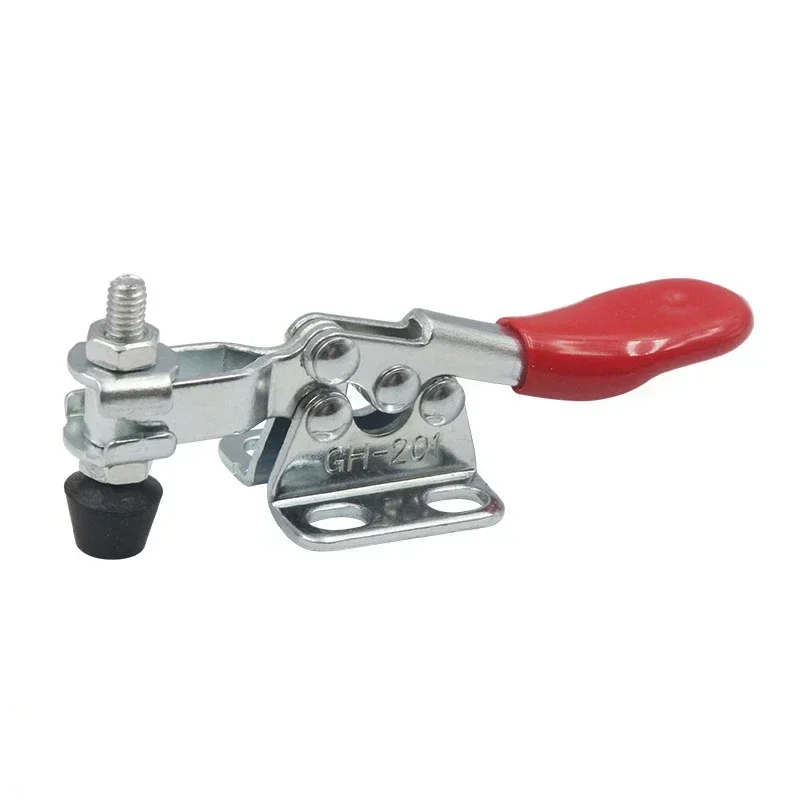

The Horizontal Quick Clamp is an essential tool for woodworking and engraving machines, providing a reliable grip for various workholding applications.
- A rock-solid grip for installation on jigs, tool fixtures, or movable bases.
- Constructed from cold-rolled carbon steel with a zinc plated coating for corrosion resistance.
- Retracted clamp allows for vertical removal of the clamped item.
- 220 lbs holding capacity, complete with adjustable rubber pressure tips.

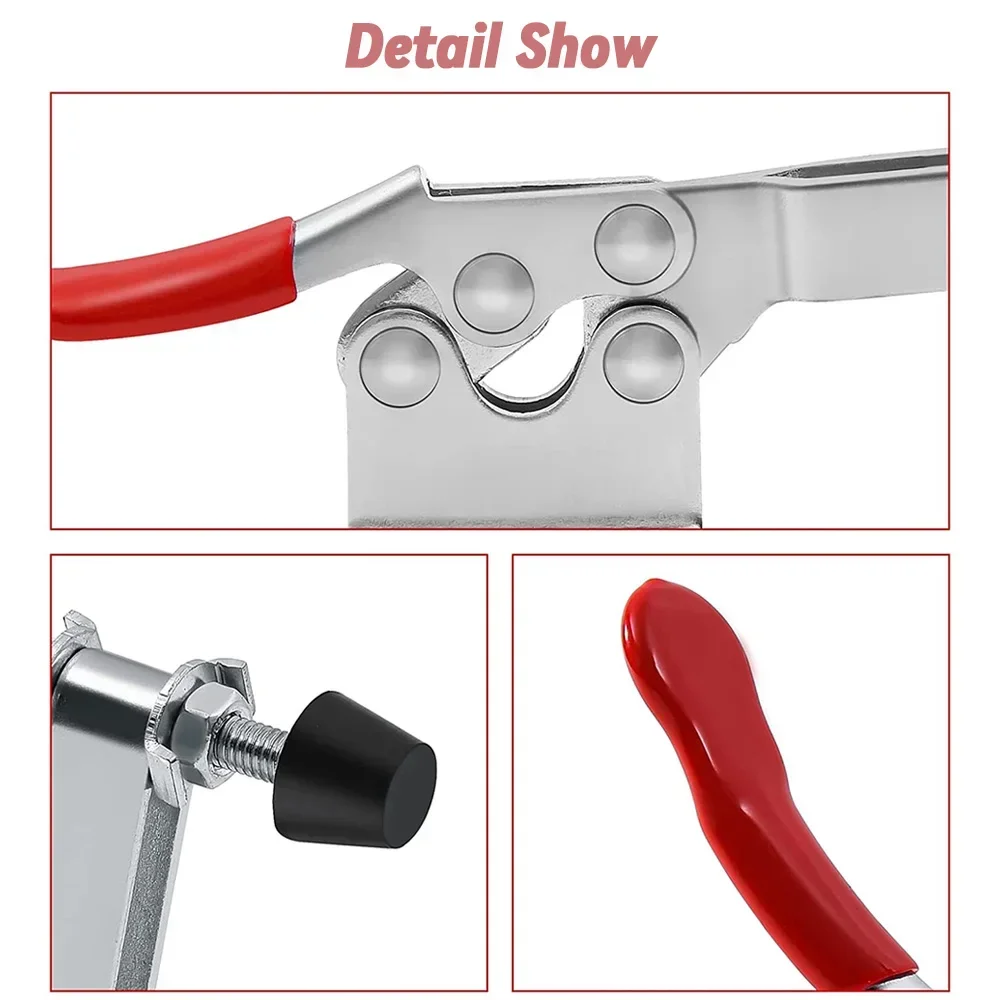

- Mechanism allows maximum clearance with a low height design.
Specifications:

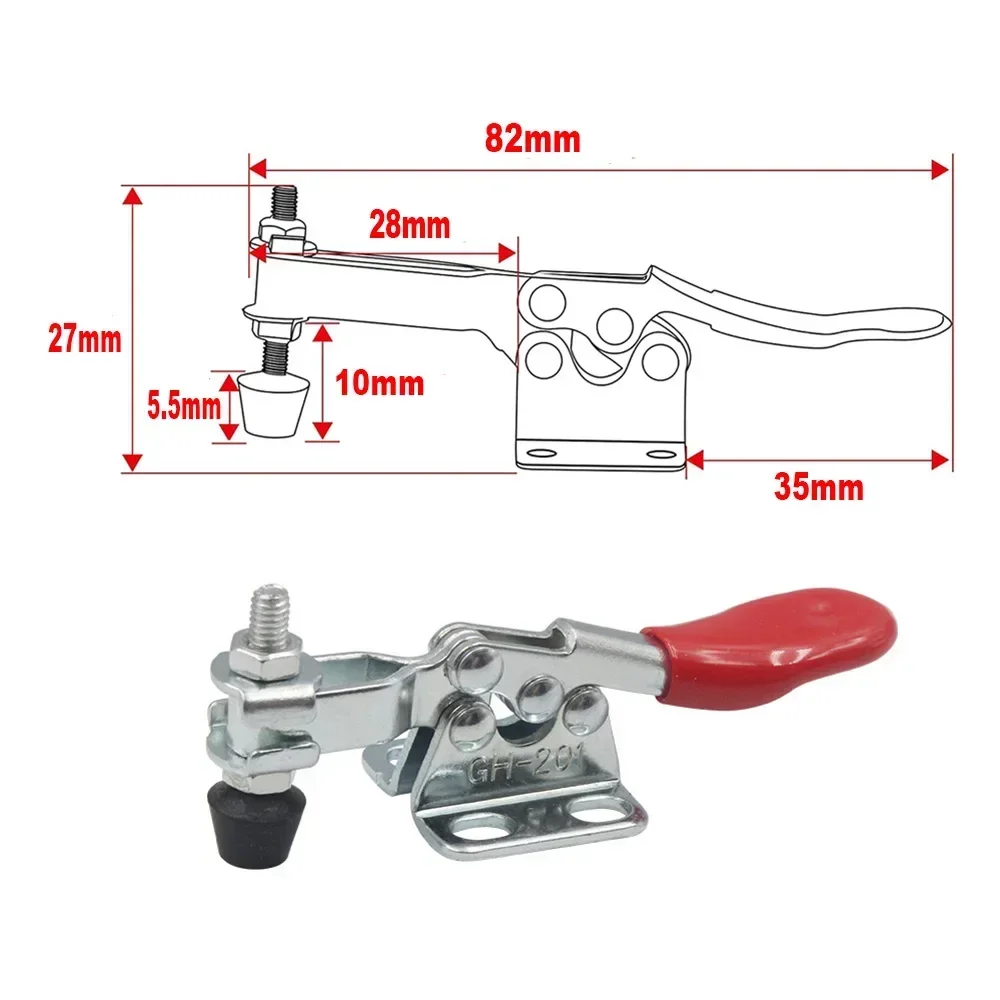

- Size: Approximately 82*25*27 mm (with a possible measurement error of 0.1-0.5 mm).
- Handle opening angle: 60°.
- Opening angle of clamping lever: 85°.
- Holding weight: 90 kg / 198 lbs.
- Hole size: Approximately 0.5 cm / 0.196 inches.
Package Content:

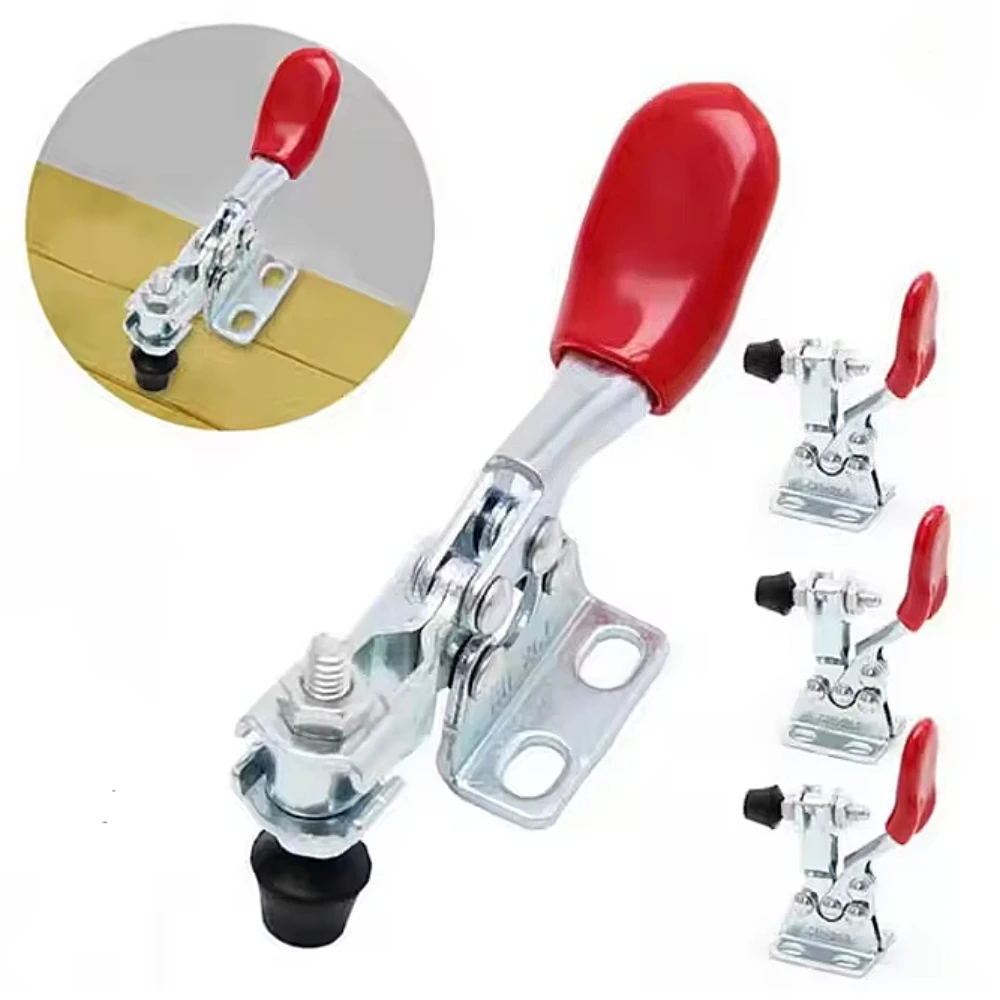

- Available in 1PC, 2PCS, 3PCS, or 4PCS options.
